Polydata exampleΒΆ

An example of how to generate a polydata dataset using numpy arrays.

The example is similar to tvtk/examples/tiny_mesh.py. Also shown is a way to visualize this data with mayavi2. The script can be run like so:

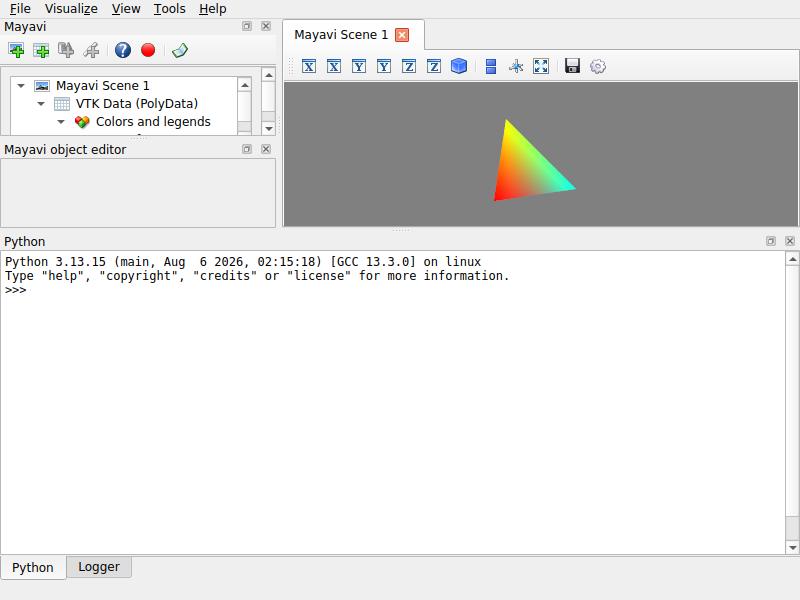

$ mayavi2 -x polydata.py

It can be alternatively run as:

$ python polydata.py

Python source code: polydata.py

# Author: Prabhu Ramachandran <prabhu at aero dot iitb dot ac dot in>
# Copyright (c) 2007, Enthought, Inc.
# License: BSD style.

from numpy import array
from tvtk.api import tvtk
from mayavi.scripts import mayavi2

# The numpy array data.
points = array([[0,0,0], [1,0,0], [0,1,0], [0,0,1]], 'f')
triangles = array([[0,1,3], [0,3,2], [1,2,3], [0,2,1]])
temperature = array([10., 20., 30., 40.])

# The TVTK dataset.
mesh = tvtk.PolyData(points=points, polys=triangles)
mesh.point_data.scalars = temperature
mesh.point_data.scalars.name = 'Temperature'

# Uncomment the next two lines to save the dataset to a VTK XML file.
#w = tvtk.XMLPolyDataWriter(input=mesh, file_name='polydata.vtp')

# Now view the data.
def view():
    from mayavi.sources.vtk_data_source import VTKDataSource
    from mayavi.modules.surface import Surface

    src = VTKDataSource(data = mesh)
    s = Surface()

if __name__ == '__main__':
